ATS-423CMP-6-NS-*
Features:
- High performance of transmission.
- High quality of safety property.
- Sweep frequency up to 550 MHz.
- Reelex II carton and easy to pull out.
- Carton with one layer corrugated design providing sufficient strength and saving packaging space.
Applications:
- Structure cabling for horizontal and building backbone cable.
- Transmission of digital and analogue for data, video and audio applications.
- IEEE 802.3ab 1000BASE-T, 1000BASE-TX and legacy speeds.
- CDDI / ATM / Token Ring
- IEEE 802.3af (PoE) / IEEE 802.3at (PoE+)
Applicable Standard:
Electrical Transmission
- ANSI/TIA-568-C.2 (2009)
- ISO/IEC 11801 (Edition 2.2)
- IEC 61156-5 (Edition 2.1)
Flame Test
- NFPA 262 (CMP)
Material and Construction
- UL 444
- CSA 22.2 NO.214
EU Directive 2011/65/EU & 2015/863/EU
EU Directive 2006/95/EC (LVD)
Usage & Environmental Condition:
Temperature storage & shipping: -20°C to 75°C
Temperature installation: 0°C to 60°C
Temperature operation: -20°C to 60°C
Minimum bending radius: ≥ 4 times of overall diameter
Maximum pulling tension: ≤ 110 N
Physical & Electrical Characteristics (at 20°C):
Temperature rating: 75°C
Spark test: 2.5 KV DC
AC leakage current through overall jacket: ≤ 10mA (1.5KV AC)
Cable cold bend: -20°C for 4 hr
Conductor DC resistance: ≤ 9.38 Ω/100m
Resistance unbalance: ≤ 5%
Dielectric strength: 1.5 KV ac for 2 s
Insulation resistance: ≥ 5000 MΩ•km
Mutual capacitance: ≤ 5.6 nF/100m

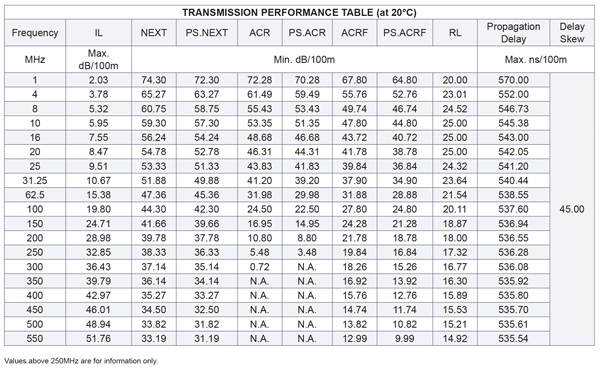

Capacitance unbalance pair-to-ground: ≤ 330 pF/100m
