90º Cat 6 GIGASNAP Snap-In Jack

Short Description:
Atras RJ45 GIGASNAP 90º Cat 6 Snap-In Jack

Part Number:
ATS-6-B (Blue)

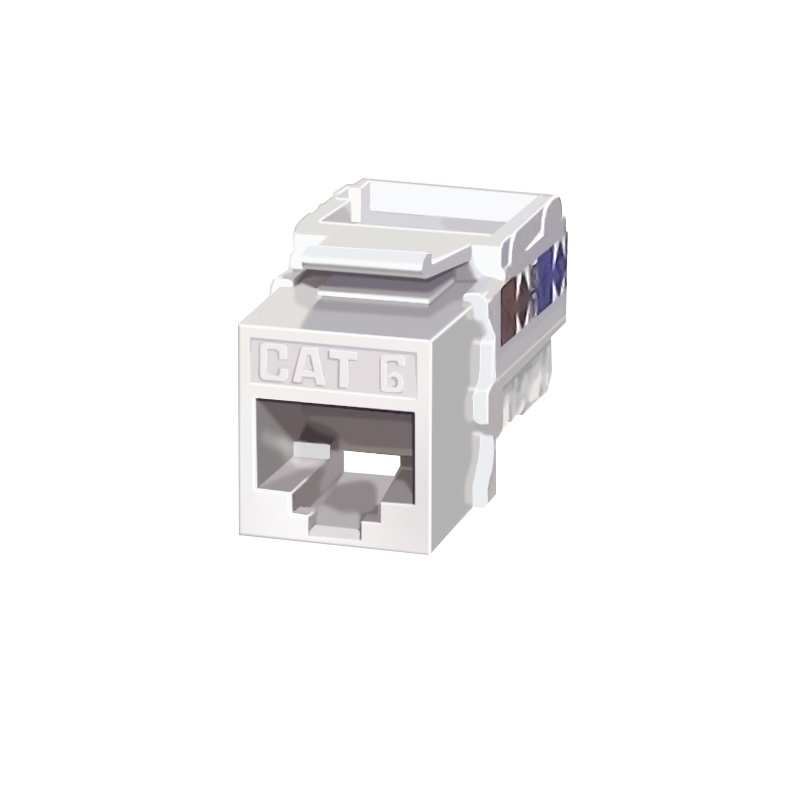

ATS-6-W (White)
ATS-6-O (Orange)

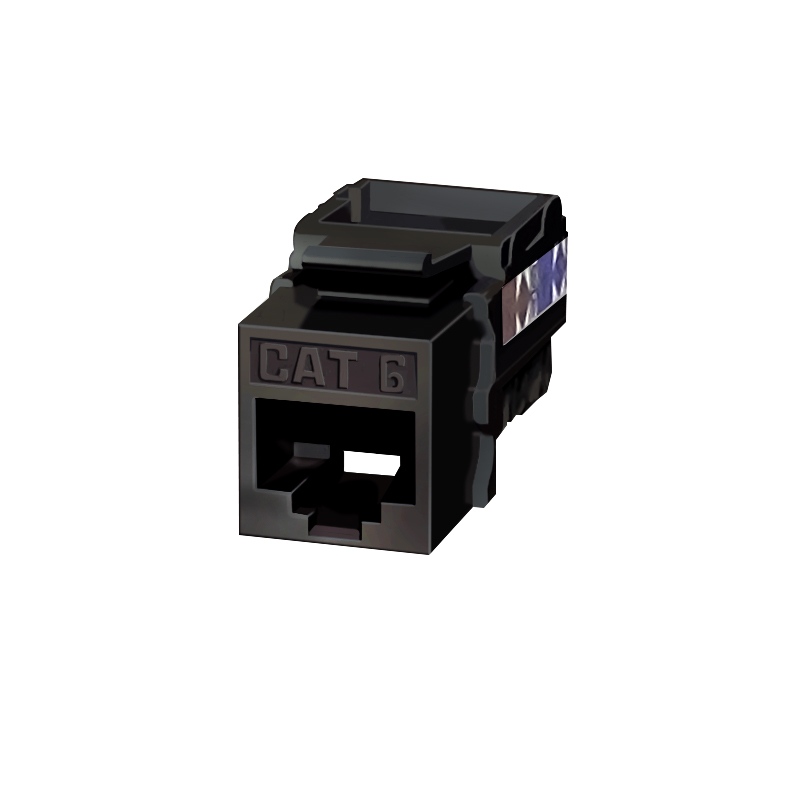

ATS-6-E (Black)
ATS-6-I (Ivory)

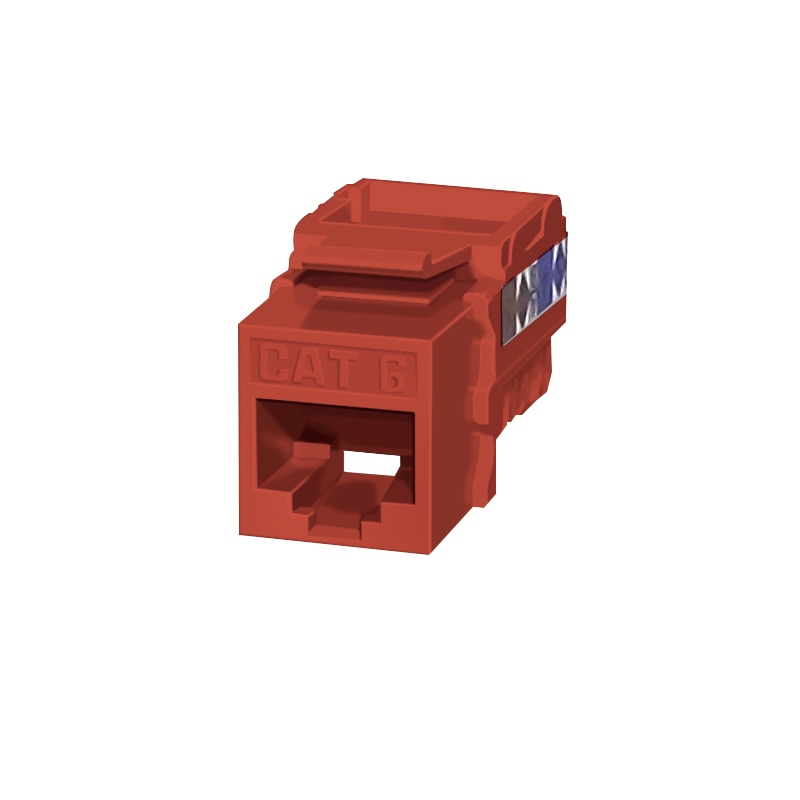

ATS-6-R (Red)

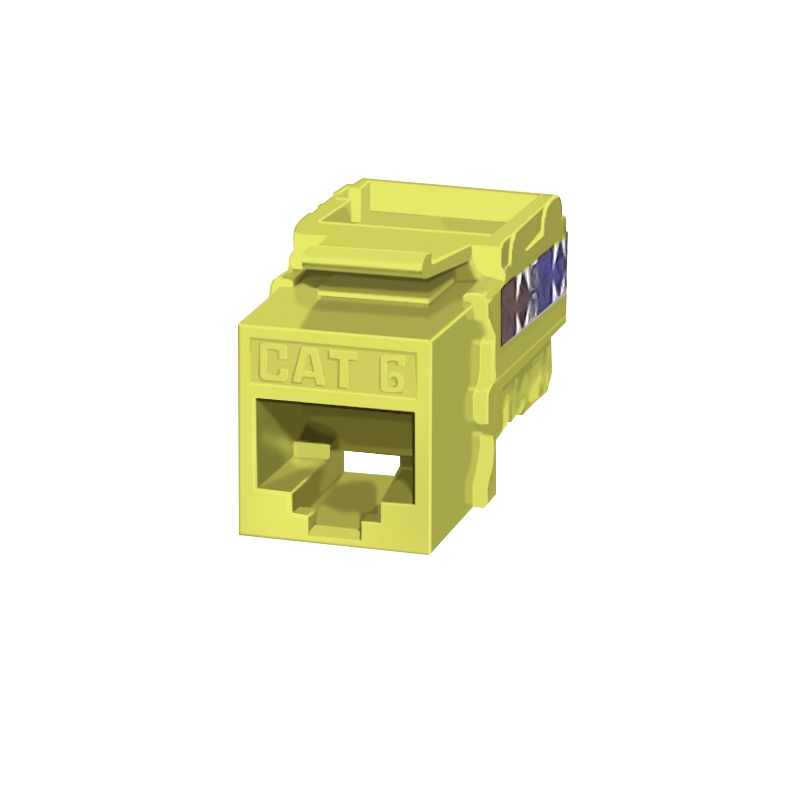

ATS-6-Y (Yellow)

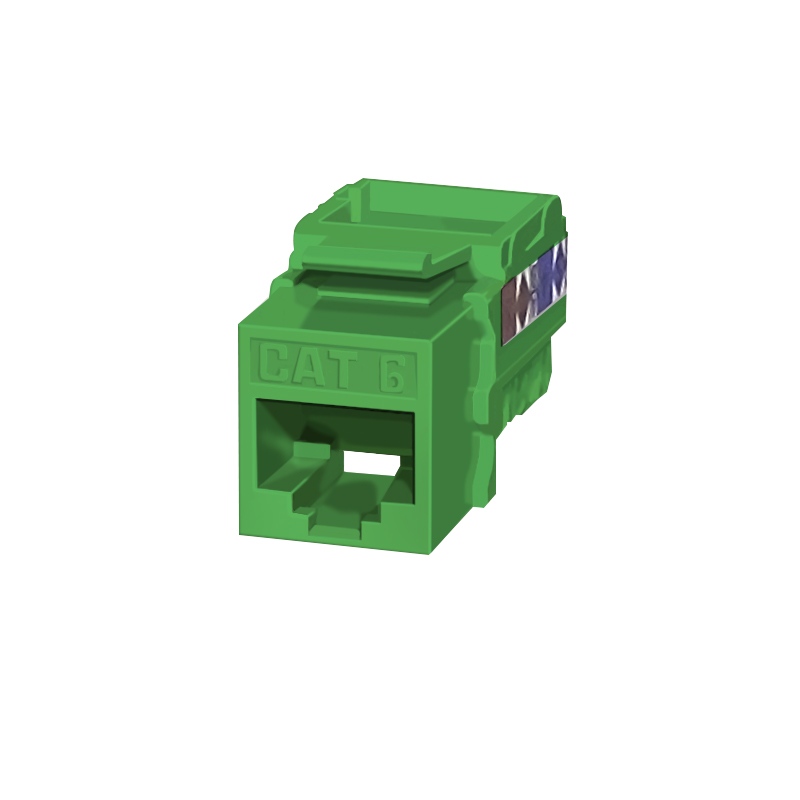

ATS-6-T (Green)

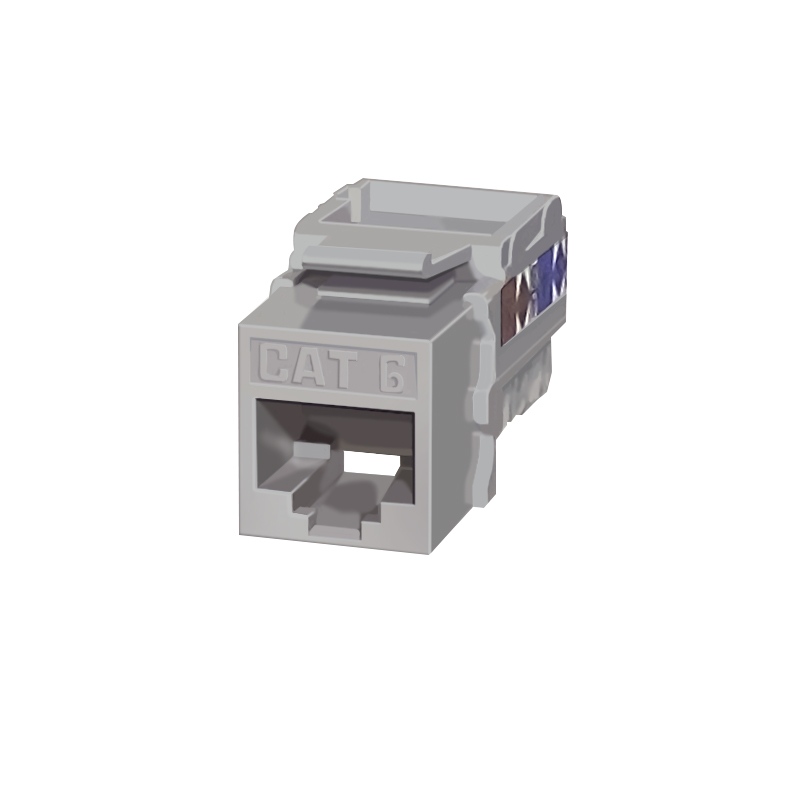

ATS-6-G (Gray)

Downloads:
Spec Sheet PDF

Description
Additional information

ATS-6-*

Features:

The ATRAS® Snap-In jack is a high quality 8-position, 8-conductor 90° RJ45 insert with dual color-coded labeling consistent with T568A and T568B wiring standards. The jacks are UL94V-0 rated high-impact, flame-resistant plastic that exceed both component and channel performance requirements, and meet all UL, NEC Article 800, and FCC Part 68 standards. All connecting hardware 100% factory transmission performance tested.

Phosphor Bronze Alloy with 50 Micro-inch Gold over 100 Micro-inch Nickel Spring Wire

Colors	Blue (B), White (W), Orange (O), Black (E), Ivory (I), Red (R), Yellow (Y), Green (T), Gray (G)
Connection Hardware Requirements	250 MHz
Insertion Loss Max	0.3 dB
NEXT Min	46.0 dB
FEXT Min	35.1 dB
Return Loss Min	16.dB
TCL Min	20 dB
TCTL Min	20 dB
IDC Wire Gauge	22 to 26 AWG
