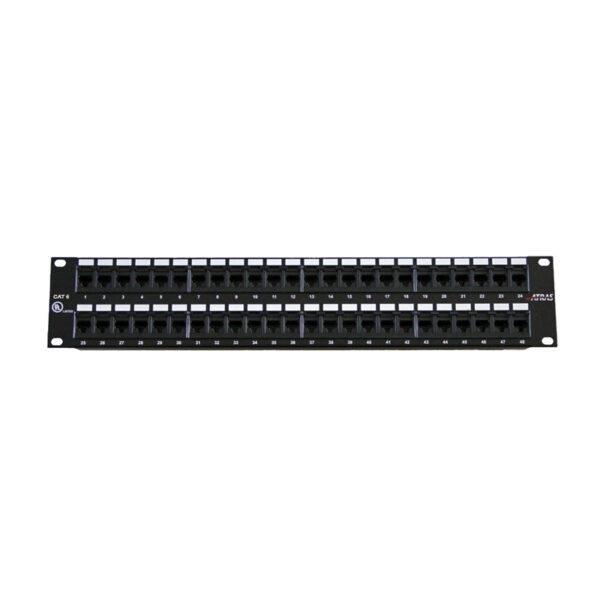

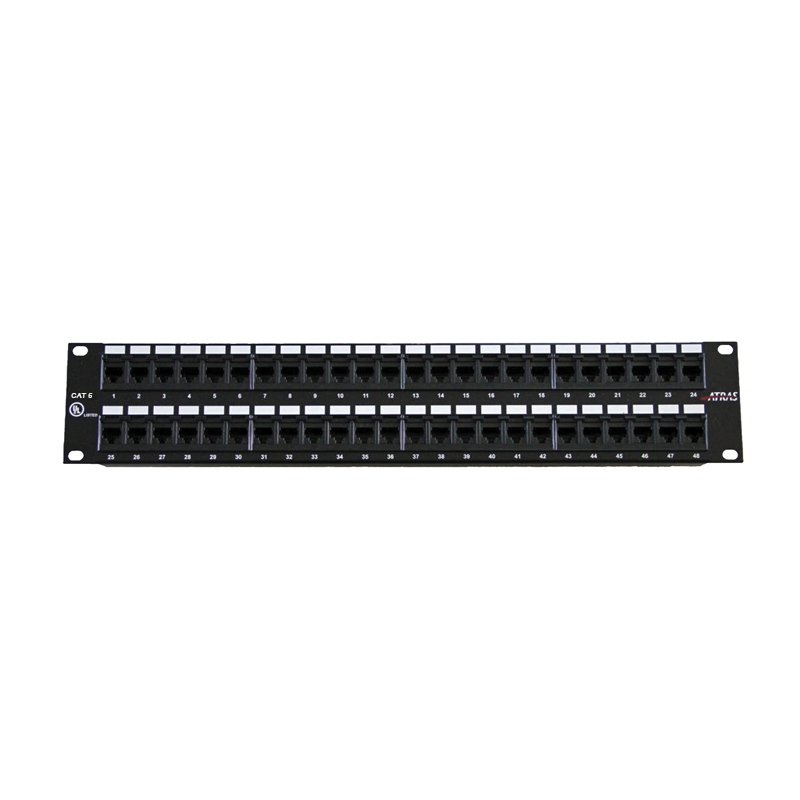

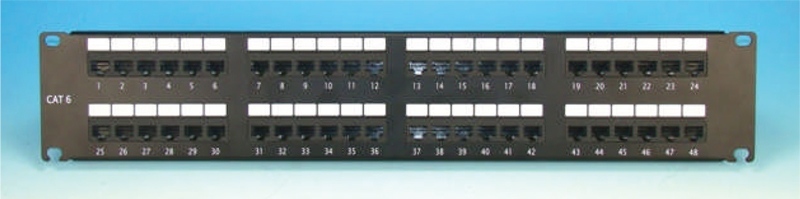

48 Port Cat 6 Patch Panel

Short Description:
48 Port Horizontal Mount Category 6 Patch Panel

Part Number:
ATS–C6–N–48P

Downloads:
Spec Sheet PDF

View Panel Diagram

ATS-C6-N-48P

Features:

  • Premium Quality

  • Metal Frame

  • Category 6 certified to meet all Cat 6 specifications

  • Engineered for high speed transmissions for optical performance

  • Color coded TIA/EIA 568A (international) and TIA/EIA 568B (AT&T standard) wiring

  • Industry standard 110 or Krone IDC connectors

  • Rear Cable Management Bracket/Strain Relief Bar

  • Includes tie wraps and mounting screws

  • Panels include port numbering and write-on labeling areas

  • 25 Year Warranty

IDC plastic

PC, UL 94V-O

IDC contact

Phosphor bronze w/ 200u” tin over 100u” nickel undercoat

Spring wire

Phosphor bronze w/ 50u” gold over 100u” nickel undercoat

Temperature

-40ºC to 68ºC

Humidity:

10% – 90% RH

Modular jack

750 mating cycles

IDC block

200 termination cycles

Current Rating

1.5A

Voltage

150V

Insulation Resistance

500m Ohm

Contact Resistance

20m Ohm

DC Resistance

0.1 Ohm
